10280 180mah 3.7V Lithium Ion Cell For Volume Domestic Product 2000 Times Circle Life
Product Details:
| Place of Origin: | Shenzhen zhuhai |
| Brand Name: | TAC OEM & ODM |
| Certification: | MSDS REACH ROHS |
| Model Number: | ICR10280 180-200mah 3.7v |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 pcs for single cell , 50pack for battery packs |
|---|---|
| Price: | promotion , quotation by quantity |
| Packaging Details: | meet UN38.3 Certification |
| Delivery Time: | 7-10 days after order confirm for stock model |
| Payment Terms: | 100% prepaid before shipping out |
| Supply Ability: | 100000PCS EACH WEEK |
|
Detail Information |
|||
| Certificate: | UL1642/ROHS | Lithium Ion: | Lithium Ion Clinder |
|---|---|---|---|
| Capacity: | 180mah | Voltage: | 3.7v |
| Size: | D: 10MM H :28MM | Warehouse: | 50000pcs |
| Price: | Promotion Price | Circle Life: | 2000times |
| Warranty: | 12 Months | ||
| Highlight: | lithium iron phosphate battery pack,lithium ion phosphate batteries |
||
Product Description
Lithium ion Cell 10280 180mah 3.7V For a Volume Domestic Product.
- The model name: 10280
- Nominal Voltage:3.7V, rated capacity:180mAh
- Application for electronic lock / recording pen/ Bluetooth Mouse.
- The max dimension: D: 10.1mm*H:28mm.
- cycle life : 500 times, 80% rest capacity
- Approved the certificate UL1642,ROHS,
Specification for Lithium ion Cell 10280 180mah 3.7V For a Volume Domestic Product.
| No. | Items | Specifications |
Remark
|
|
| 1 |
Nominal Capacity
|
180mAh |
0.2C Standard discharge 0.2C |
|
| 2 |
Minimum Capacity
|
174mAh | ||
| 3 |
Nominal Voltage
|
3.7V |
Mean Operation Voltage
|
|
| 4 |
Delivery voltage
|
3.70~3.90V |
Within 10 days from Factory
|
|
| 5 |
Charge Voltage
|
4.2V±0.03V |
By standard charge method
|
|
| 6 |
Standard charging method
|
0.2C constant current,4.2V constant voltage charge to 4.2V,continue charging till current decline to ≤0.01C |
≤0.01C |
|
| 7 |
Charge current
|
0.2C | 36mA |
Standard charge, charge time about 6h(Ref) |
| 0.5C | 90mA |
Rapid Charge, charge time about: 3h(Ref)
|
||
| 8 |
Standard discharging method
|
0.2C constant current discharge to3.0V, | ||
| 9 |
Cell Internal Impedance
|
≤150mΩ |
Internal resistance measured at AC 1KHZ after 50% charge
|
|
Charge and discharge performance with IEC standard
| No. | Items | Specifications |
Remark |
|
| 10 |
Maximum charge current |
1C | 200mA |
For continuous charging mod |
| 11 |
Maximum discharge current |
1.5C | 300mA |
For continuous discharge mod |
| 12 |
Operation Temperature and relative humidity Range
|
Charge/ |
0~45℃ 60±25%R.H. |
Charge at a very low temperature such as blew 0℃,will be get a lower capacity and reduce cycle life of the battery |
| Discharge/ |
-20~60℃ 60±25%R.H. |
|||
| 13 |
Storage temperature for a long time
|
-20~25℃ 60±25%R.H. |
Do not storage exceed half year. Must charge once when storage for half year. must charge the battery which with protect circuit when storage for three months. |
|
Package
the battery cell put in the inner box , 50pcs in one inner box and then 8 box in one carton
Delivery Lead Time
This is model is specially size, we can ship out it within 7 days after your order confirm
by express air or ocean base on your detail quantity

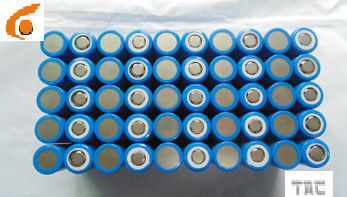

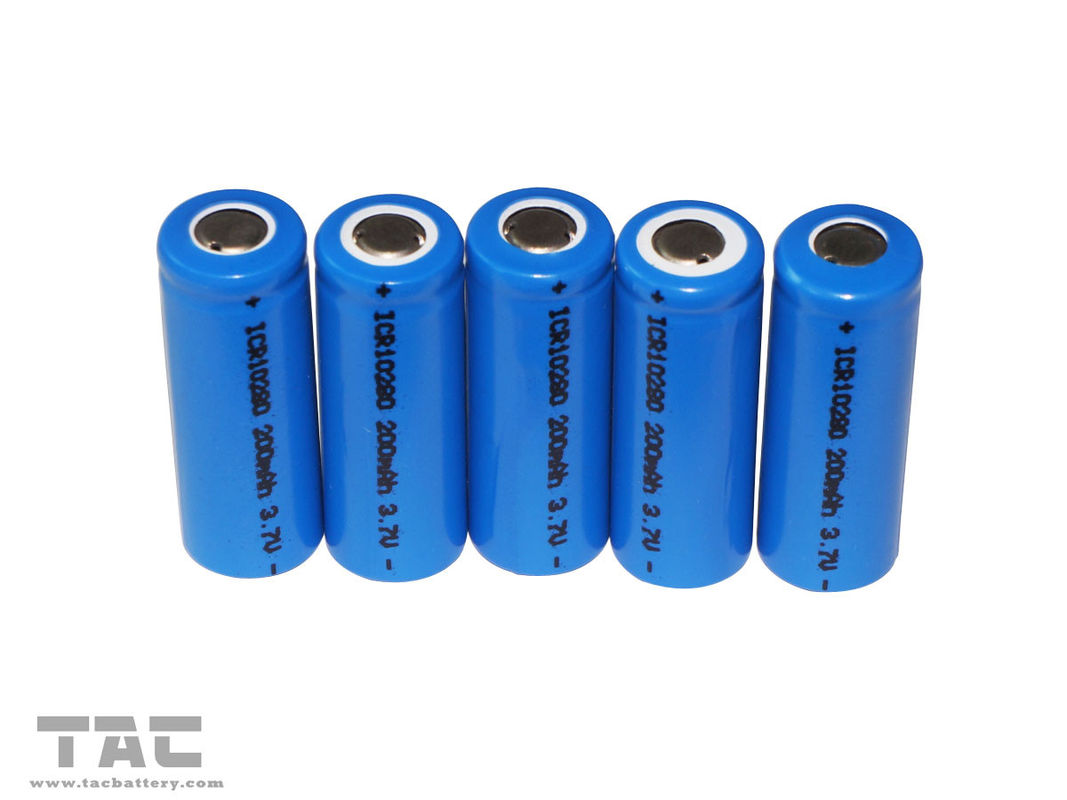

Battery Photo
The cell can be packed with connector as below or assemble the the other pack with your require
