3.7v 90mah 401225 Rechargeable Li ion Polymer Battery For Recording Pen

3.7v 90mah 401225 Rechargeable Li ion Polymer Battery For Recording Pen

Product Details:

Place of Origin: Shenzhen zhuhai
Brand Name: TAC OEM & ODM
Certification: MSDS REACH ROHS
Model Number: lp041225

Payment & Shipping Terms:

Minimum Order Quantity: 500 pcs for single cell , 50pack for battery packs
Price: 0.5-1 each pcs
Packaging Details: meet UN38.3 Certification
Delivery Time: 7-10 days after order confirm for stock model
Payment Terms: 100% prepaid before shipping out
Supply Ability: 100000PCS EACH WEEK
Get Best Price Contact Now

Detail Information

PO NO: PLIC0964 Capacity: 90mah
Voltage: 3.7v Rechargeable: Yes
Pcb: Involve Circle Life: 500 Times
Warranty: 1 Year Size: 4*12*25mm
High Light:

3.7v lithium ion battery

,

lithium ion phosphate batteries

Product Description



Li-polymer Battery 401225 Rechargeable Li ion Polymer Battery for Recording Pen

The Polymer Lithium Ion Battery (LP) features the following:



  1. Most of cell Passed UL, CE tests to ensure products are safe for public use.
  2. Lighter weight, higher capacity, higher operation voltage, low self-discharge rate,than normal lithium battery
  3. Excellent abuse tolerance and environmentally friendly passed Reach and Rohs
  4. Suitable for a wide variety of applications and system designs.
  5. Offers an excellent combination of price-performance.



Application:

UAM ,Mobile phone, notebook PC, Bluetooth, PDA, MP3/MP4, smart card, portable DVD player, camcorder, UPS, Power tools,LEV, HEV and EV etc.



Specificaiton for

Li-polymer Battery 401225 Rechargeable Li ion Polymer Battery for Recording Pen



No.

Item

Rated Performance

Remark

1

Rated Capacity

Minimum

90mAh

Standard discharge(0.2C

C5A) after Standard charge

2

Nominal Voltage

3.7V

Mean Operation Voltage

During Standard Discharge

After  Standard  Charge

3

Voltage at end of

Discharge

3.0V

Discharge Cut-off Voltage

4

Charging Voltage

4.2±0.03V



5

AC  (1KHz) Impedance

New Cell Max.(mW)

≤120mΩ



6

Standard charge

Constant Current 0.5C5A

Constant Voltage 4.2V

0.01 C5A cut-off

Charge time : Approx 4.0h

7

Standard discharge

Constant current 0.2 C5A

end voltage 3.0 V



8

Fast charge

Constant Current 1C5A

Constant Voltage 4.2V

0.01 C5A cut-off

Charge time : Approx 2.5h

9

Fast discharge

Constant current 1 C5A

end voltage 3.0 V



10

Maximum Continuous

Charge Current

1 C5A



11

Maximum Continuous

 Discharge Current

1.5 C5A



12

Operation Temperature Range

Charge: 0~45℃

60±25%R.H.

Be Cell

Discharge: -20~60℃

13

Storage Temperature

Range

Less than 1 year: -20~25℃

60±25%R.H.

at the shipment state

less than 3 months: -20~40℃

14

Weight

Approx :10g

Bare Cell

15

Cell  Dimension

Length: Max.25.5mm

Initial  Dimension

Width: Max.12.5mm

Thickness: Max. 4.2mm

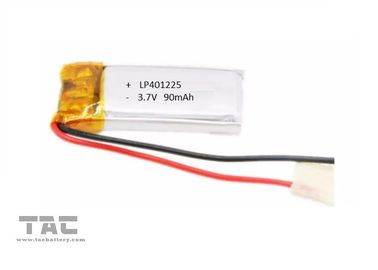

Package Picture

3.7v 90mah 401225 Rechargeable Li ion Polymer Battery For Recording Pen 0

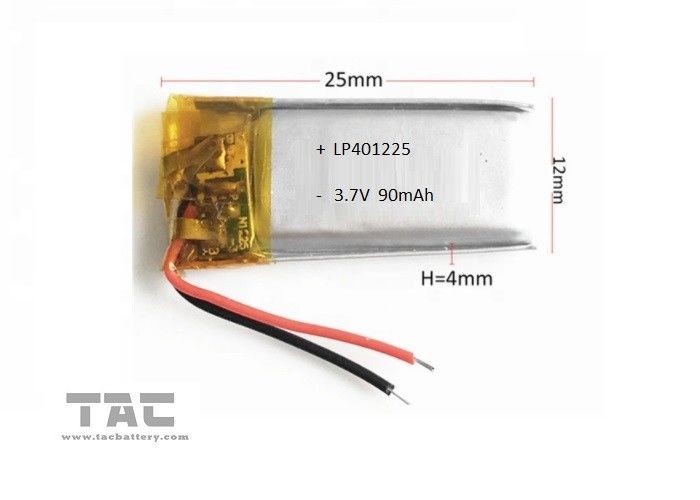

 Production Photo

3.7v 90mah 401225 Rechargeable Li ion Polymer Battery For Recording Pen 1

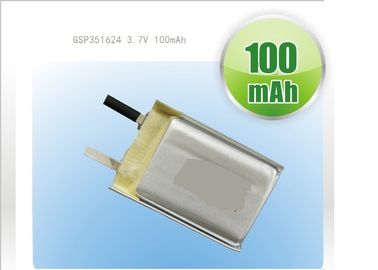

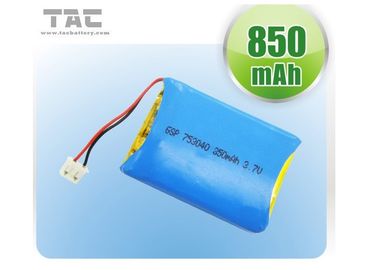

similar size and capacity



3.7v 90mah 401225 Rechargeable Li ion Polymer Battery For Recording Pen 2

Period of Warranty

The period of warranty is six months from the date of shipment. Great Power guarantees to give a replacement in case of cells with defects proven due to manufacturing process instead of the customers abuse and misuse.

Storing the Batteries

The batteries should be stored at room temperature, charged to about 30% to 50% of capacity.
We recommend that batteries be charged about once per year to prevent over discharge.
