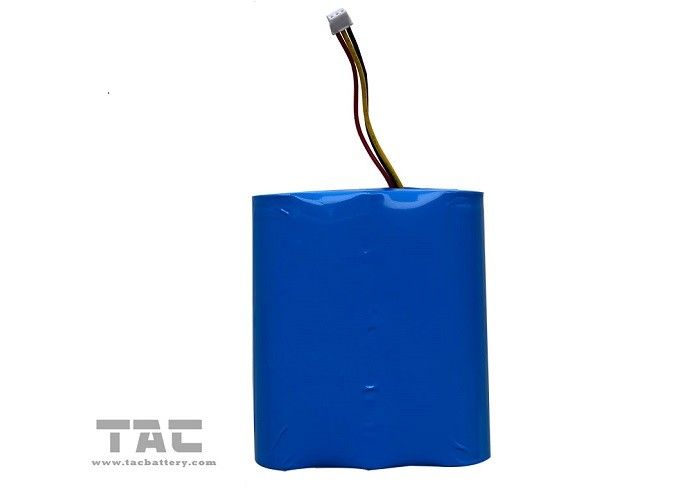

3.6V Lithium ion Battery Pack INR21700 14.4AH For Camera

3.6V Lithium ion Battery Pack INR21700 14.4AH For Camera

  • 3.6V Lithium ion Battery Pack INR21700 14.4AH For Camera
  • 3.6V Lithium ion Battery Pack INR21700 14.4AH For Camera
  • 3.6V Lithium ion Battery Pack INR21700 14.4AH For Camera
3.6V Lithium ion Battery Pack INR21700 14.4AH For Camera
Product Details:
Place of Origin: Shenzhen zhuhai
Brand Name: TAC
Certification: REACH ROHS
Model Number: ICR21700 3.6V 14.4AH
Payment & Shipping Terms:
Minimum Order Quantity: 500 SET
Price: USD5-10
Packaging Details: meet un38.3 require
Delivery Time: 5-7days for cell , 25-30 days for OEM pack
Supply Ability: 50000 /Week
Contact Now
Detailed Product Description
Material: 3.6V Lithium Battery Capacity: 14.4AH
Voltage: 3.6V Size: 73*65*22.5mm
Single Cell: ICR21700 3.6v 4.8ah Circle Life: 500 Times
Warranty: 1 Year BMS: Involve
Connector: JST ZHR-3P(1.5) NTC: 100K

3.6V Lithium ion Battery Pack INR21700 14.4AH For Camera

Specification for 3.6V Lithium ion Battery Pack INR21700 14.4AH For Camera



No. Items/项目 Specifications/规格

Remark

备注



1

Capacity for assembled cell

discharging by 0.2C

电芯组装后 0.2C 标准放电方式的容量





≥14100mAh

Standard discharging method

标准放电方式



2



Battery Voltage

电池电压



≥3.6V



Delivery voltage, Within 10 days from Factory

交货电压,在出厂 10天内







3





Standard charge condition

标准充电条件



Charge with 0.2C constant current and 4.2Vconstant voltage, charge to 4.2V,continue charging till current declineto ≤0.01C

充电电流用 0.2C 恒流,4.2V 恒压充至电流≤0.01C

Charge voltage:4.2V±0.02V

Charge current:0.2C

充电电压:4.2V±0.02V

充电电流:0.2C



4

Maximum charge current

最大充电持续电流



1.5A





For continuous charging mod

连续充电模式



5

Maximum discharge current

最大放电持续电流





1.5A



For continuous discharge mod

连续放电模式



6

Standard discharging method

标准放电方式



0.2C constant current discharge to 2.5V,

0.2C 恒流放电至 2.5V



7

Internal Impedance

内阻





Assemblage Impedance

装配后内阻≤130mΩ

Measure two sides of the drawing line after assembling.

装配后测试电池引线两端



Application  for  3.6V Lithium ion Battery Pack INR21700 14.4AH For Camera

This is specially design for camera

The battery pack also can use for portable ESS

3.6V Lithium ion Battery Pack INR21700 14.4AH For Camera 0



Engineer Drawing for Battery Pack

3.6V Lithium ion Battery Pack INR21700 14.4AH For Camera 1



Detail Dimension

NO. Items 单位Units:mm
1 Length/长度 L Max73mm
2 Width/宽度 W Max65mm
3 Thickne/厚度 T Max22.5mm
4 Wire/引线长度 L1 50±3mm

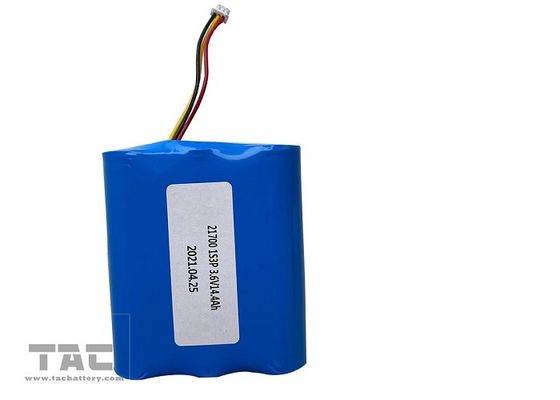

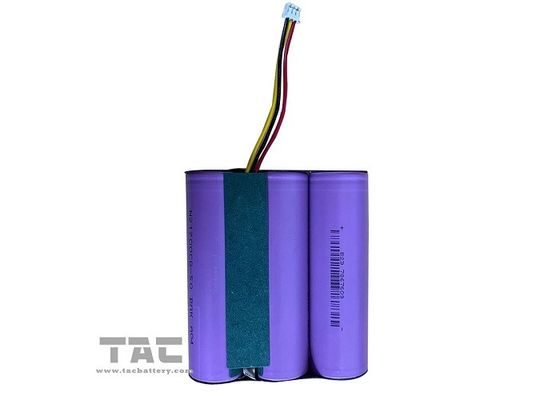

Battery Photo



3.6V Lithium ion Battery Pack INR21700 14.4AH For Camera 2

3.6V Lithium ion Battery Pack INR21700 14.4AH For Camera 3



Tac Shenzhen Factory

3.6V Lithium ion Battery Pack INR21700 14.4AH For Camera 4



Period of Warranty

The period of warranty is One year from the date of shipment. TAC guarantees to give a replacement in case of cells with

defects proven due to manufacturing process instead of the customer abuse and misuse.



Storage of the Batteries

The batteries should be stored at room temperature, charged to about 30% to 50% of capacity.

We recommend that batteries be charged about once per half a year to prevent over discharge.
