INR26650 11.1V 10AH Lithium Ion Cylindrical Battery For Portable GPS Device

INR26650 11.1V 10AH Lithium Ion Cylindrical Battery For Portable GPS Device

  • INR26650 11.1V 10AH Lithium Ion Cylindrical Battery For Portable GPS Device
  • INR26650 11.1V 10AH Lithium Ion Cylindrical Battery For Portable GPS Device
INR26650 11.1V 10AH Lithium Ion Cylindrical Battery For Portable GPS Device
Product Details:
Place of Origin: shenzhen
Brand Name: TAC OR OEM
Certification: REACH ROHS
Model Number: ICR26650 11.1V 10AH
Payment & Shipping Terms:
Minimum Order Quantity: 500 pcs for single cell , 50pack for battery packs
Price: usd 10-20
Packaging Details: 5 Battery Packs for one box
Delivery Time: 7 days for single cell 15-20 days for battery pack
Payment Terms: 100% prepaid before shipping out
Supply Ability: 50000 per week
Contact Now
Detailed Product Description
Type: Lithium-ion Battery Voltage: 11.1v
Capacity: 10ah Dimension: 12
Pcm: Detail Connector: KET Original Model
Assemble Method: 3s1p Single Cell: ICR26650 3.7V 5AH
High Light:

10AH Lithium Ion Cylindrical Battery

,

INR26650 Lithium Ion Cylindrical Battery

Lithium Ion Battery INR26650 11.1V 10AH For Portable GPS Device



Battery specifications



No. Items Specifications

Remark





1

Capacity for assembled cell

discharging by 0.2C







≥9600mAh

Standard discharging method





2



Battery Voltage





≥11.1V



Delivery voltage, Within 10 days from Factory









3





Standard charge condition





Charge with 0.2C constant current and 12.6Vconstant voltage, charge to 12.6V,continue charging till current declineto ≤0.01C



Charge voltage:12.6V±0.02V

Charge current:0.2C



4

Overcharging protection voltage





12.39V-12.825V





5

Maximum charge current





4A





For continuous charging mod





6

Maximum discharge current







4A



For continuous discharge mod





7

Standard discharging method





0.2C constant current discharge to 9.0V,

0.2C



8

Internal Impedance







Assemblage Impedance

≤150mΩ

Measure two sides of the drawing line after assembling.

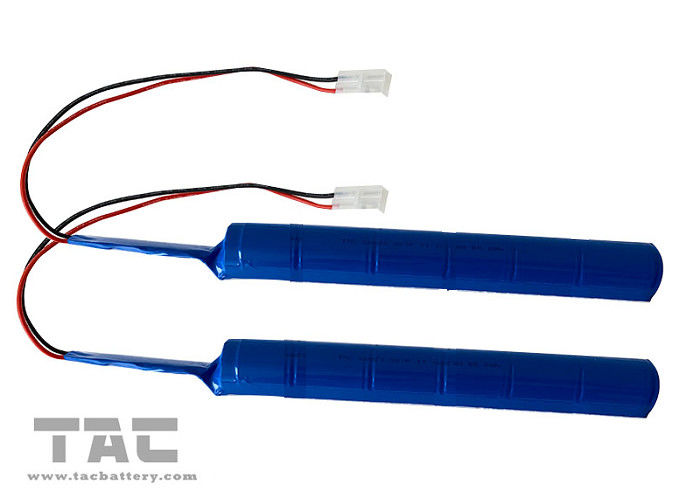

INR26650 11.1V 10AH Lithium Ion Cylindrical Battery For Portable GPS Device 0

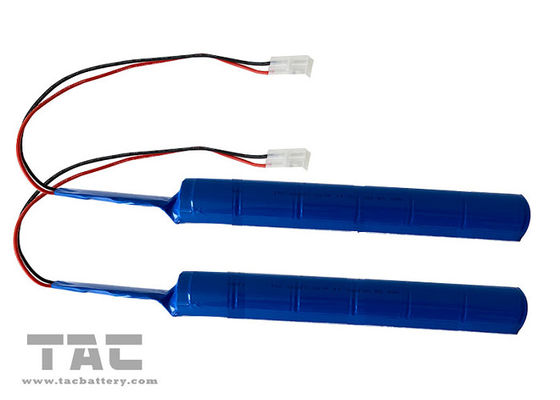

INR26650 11.1V 10AH Lithium Ion Cylindrical Battery For Portable GPS Device 1



NO. Items Units:mm
1 Length/) L1 Max408mm
2 Length/ L2 Max468mm
3 Diameter W Max30mm
4 Wire/ L3

200±3mm





BOM of Battery Pack



NO. Part name Quantity Unit Remark HSF
1 Cell 6 ea ICR26650 5AH ROHS
2 Connector 1 PCS

ROHS



3 Solder 0.2 g Lead Free ROHS
4 Wire 2 PCS 18AWG ROHS
5 PCM 1 PCS SH0405B034X2-LX3S4A ROHS

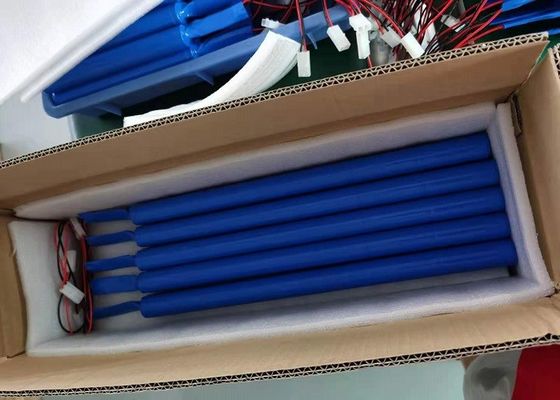

Battery Packing Method

5 packs for one carton, protectl for strong foam





INR26650 11.1V 10AH Lithium Ion Cylindrical Battery For Portable GPS Device 2
