Battery Vaporizer 3.7V E-cig Big Battery LIR13700 1100MAH

Battery Vaporizer 3.7V E-cig Big Battery LIR13700 1100MAH

  • Battery Vaporizer 3.7V E-cig Big Battery LIR13700 1100MAH
  • Battery Vaporizer 3.7V E-cig Big Battery LIR13700 1100MAH
Battery Vaporizer 3.7V E-cig Big Battery LIR13700 1100MAH
Product Details:
Place of Origin: shenzhen
Brand Name: TAC
Certification: UL,ROHS
Model Number: PLIC0102
Payment & Shipping Terms:
Minimum Order Quantity: 5000pcs
Price: Price Negotiable
Packaging Details: 500pcs/carton
Delivery Time: 14Days
Payment Terms: TT, LC, Paypal, etc
Supply Ability: 100000Piece/days
Contact Now
Detailed Product Description
Product Name: E-cigarette Battery Nominal Voltage: 3.7V
Voltage At End Of Discharge: 3.0V Internal Impedance: ≤55mΩ
Maximum Continuous Operation Current: 1100mA Storage Temperature Range: Less Than 6 Months: -10~35℃
High Light:

polymer battery vs lithium ion

,

polymer battery

Battery Vaporizer 3.7V E-cig Big Battery LIR13700 1100MAH


Detailed Product Description



  1. The model name is LIR13700/1100mAh,The Vol is 3.7V
  2. Repeated use or Single use are available.
  3. There are LIR08500P,LIR08570P,LIR08600P,LIR75500,LIR08600P,LIR13450 For your choice




Specification:


No.


Item

General Parameter

Remark

1

Rated Capacity

Typical

1100mAh

Standard discharge(1.2A)

after Standard charge

Minimum

1050mAh

2

Nominal Voltage

3.7V

Mean Operation Voltage

3

Voltage at end of

Discharge

3.0V

Discharge Cut-off Voltage

4

Charging Voltage

4.2±0.05V



5

Internal Impedance

≤55mΩ

Internal resistance measured at AC 1KHZ after 50% charge

The measure must uses the new batteries that within one week after shipment and cycles less than 5 times

6

Standard charge

Constant Current 0.5C5A

Constant Voltage 4.2V

0.01 C5A cut-off

Charge time : Approx 3.0h

7

Standard discharge

Constant current 0.5C5A

end voltage 3.0V



8

Maximum Continuous Operation Current

1100mA



9

Operation Temperature Range

Charge: 0~45℃

60±25%R.H.

Bare Cell





Discharge: -10~60℃



10

Storage Temperature Range

Less than 1 month: -20~40℃

60±25%R.H.

at the shipment state





less than 6 months: -10~35℃



11

Cell  Dimension

Length:Max.70.0mm

Initial  Dimension





D:Max.13.2mm






Pictures:

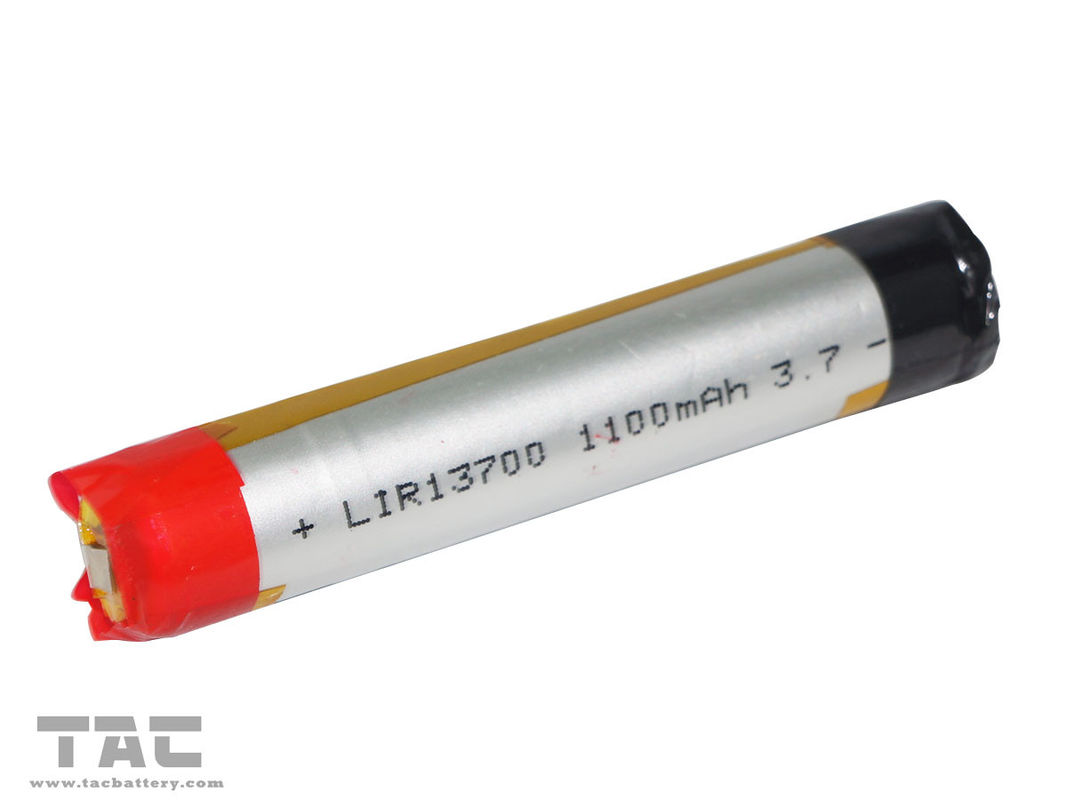

 Big Battery Vaporizer 3.7V LIR13700/1100mAh E-cig Big Battery For Electronic cigarette







 Big Battery Vaporizer LIR13700/1100mAh Electronic Cigarettes Battery




 Big Battery Vaporizer LIR13700/1100mAh Electronic Cigarettes Battery



Application:


Big Battery Vaporizer 3.7V LIR13700/1100mAh E-cig Big Battery For Electronic cigarette
