OEM Cylindrical Li Ion Battery ICR18650 3.6V 3350mah With USB Terminal

OEM Cylindrical Li Ion Battery ICR18650 3.6V 3350mah With USB Terminal

Product Details:

Place of Origin: China
Brand Name: Sunland
Certification: Rhos UN38.3
Model Number: ICR18650 3.6V 3350mah

Payment & Shipping Terms:

Minimum Order Quantity: 1000PCS
Price: 4-4.5USD
Packaging Details: Carton package
Get Best Price Contact Now

Detail Information
Product Name: ICR18650 3.7V 3350mah WITH Usb Color: Blue
Type: Li-ion Battery Size: 18*65mm
Application: Remote Control Mouse Home Appliances Cycle Life: 300 Times
High Light:

OEM Cylindrical Li Ion Battery

,

ICR18650 Cylindrical Li Ion Battery

,

Cylindrical Li Ion Battery 3350mah

Product Description

Cylindrical li ion battery ICR18650 3.6V 3350mah with USB terminal

Quick detail of Lifepo4 Battery

Cycle life: >300cycles

Application: Home Appliances, remote control mouse

Dimension: 18*65MM / Customized

Nominal Capacity: 3350MAh

Charging Voltage: 3.6v

Weight: 48G

Battery Type: Lithium ion  Battery

OEM/ ODM: Accept OEM / ODM Customize

Certification: UN38.3/MSDS/KC



Period of Warranty:

The period of warranty is 12 months from the date of shipment. Sunland guarantees to give a replacement in case of battery with defects proven due to manufacturing process instead of the customer abuse and misuse.



Battery Spec:



No. Item Rated Performance Remark
1 Rated Capacity Typical 3350mAh Standard discharge(0.2C C5A) after Standard charge
Minimum 3250mAh
2 Nominal Voltage 3.6V Mean Operation Voltage During Standard Discharge After Standard Charge
3

Voltage at end of

Discharge

 2.5V Discharge Cut-off Voltage
4 Charging Voltage 4.2±0.03V
5 AC (1KHz) Impedance New Cell Max.(mW) ≤45mΩ The measure must be uses the new batteries that within one week after shipment and cycles less than 5 times
6 Standard charge

Constant Current 0.2C5A

Constant Voltage 4.2V

0.01 C5A cut-off

 Charge time : Approx 6.0h
7 Standard discharge

Constant current 0.2 C5A

end voltage 2.5V


8 Fast charge

Constant Current 0.5C5A

Constant Voltage 4.2V

0.01 C5A cut-off

 Charge time : Approx 3h
9 Maximum Continuous Charge Current 0.5 C5A
10 Maximum Continuous Discharge Current 1 C5A
12 Operation Temperature Range Charge: 0~45℃

60±25%R.H.

Bare Cell
Discharge: -20~60℃
13

Storage Temperature

Range

 Less than 1 year: -20~25℃

60±25%R.H.

at the shipment state
less than 3 months: -20~40℃
14 Weight Approx 46±2g Bare Cell
15 Cell Dimension Diameter:18.3±0.2mm Initial Dimension
Height:64.5±0.5mm

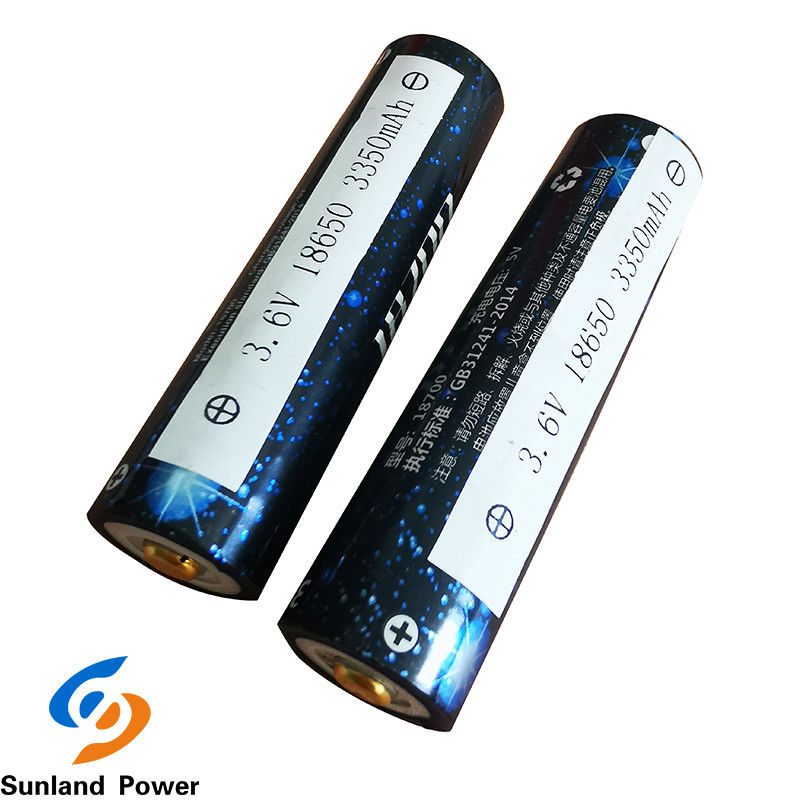

Battery photos:

OEM Cylindrical Li Ion Battery ICR18650 3.6V 3350mah With USB Terminal 0





Application:

OEM Cylindrical Li Ion Battery ICR18650 3.6V 3350mah With USB Terminal 1
