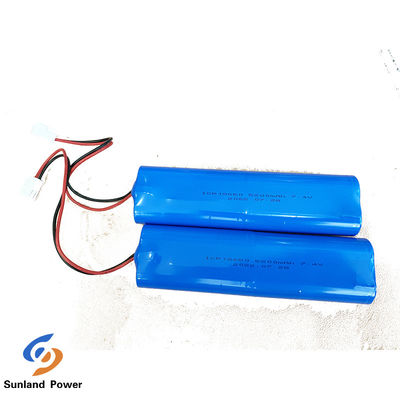

7.4V 5.2Ah Lithium Ion Cylindrical Battery Pack ICR18650 2S2P For Handheld Network Tester
Product Details:
| Place of Origin: | GUANGZHOU |
| Brand Name: | ODM OR OEM |
| Certification: | MSDS REACH ROHS UN38.3 |
| Model Number: | ICR18650 2S2P |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100pcs |
|---|---|
| Price: | USD3.3 |
| Packaging Details: | 100pcs per carton |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 10000PCS per month |
|
Detail Information |
|||
| Size: | 22.5mm*38mm*134mm | Voltage: | 7.4V |
|---|---|---|---|
| Capacity: | 5.2Ah | Warranty: | 1 Year |
| Cycle Life: | 500 Times | Application: | Handheld Network Teste |
| High Light: | 5.2Ah Lithium Ion Cylindrical Battery,ICR18650 Lithium Ion Cylindrical Battery |
||
Product Description
7.4V 5.2Ah Lithium Ion Cylindrical Battery Pack ICR18650 2S2P For Handheld Network Tester
Description:
1. MODEL :ICR18650 2S2P
2. Nominal Capacity:5.2AH
3. Nominal Voltage:7.4V
4. Weight:180g
5. Size:22.5mm*38mm*134mm
6. Max continuous charge current:5A
7. Max continuous discharge current:5A
|
No. |
Items |
Specifications |
Remark |
|
1 |
Capacity for assembled cell discharging by 0.2C |
≥5Ah |
Standard discharging method |
|
2 |
Battery Voltage |
≥7.4V |
Base on MOQ 10K Within 10 days from Factory |
|
Battery SOC |
Appr 30% | ||
|
3 |
Standard charge condition |
Charge with 1A constant current and 8.4V constant voltage, charge to 8.4V,continue charging till current decline to ≤0.01C |
Charge voltage: 8.4V±0.03V Charge current:1A |
| 4 |
Max continuous charge current |
2A |
|
|
5 |
Standard discharging method |
2A constant current discharge to 6V, |
|
| 6 |
Max continuous discharge current |
5A |
|
|
7 |
Internal Impedance |
Assemblage Impedance |
Measure the Red and black wire of the connector after assembling. |
| 8 |
Charge upper limit temperature |
0-45℃ |
Charging at low temperature, capacity and cycle life will reduce. |
| 9 |
Discharge upper limit temperature |
-20-60℃ | |
| 10 | Connector | JST VH-2N |
The original JST connectors (PHR-4P) |
| 11 | Wire | UL1007 22AWG |
Outside diameter Max :1.5mm |
| 12 | Date code | Cell date code and battery date code not beyond 3month |
