3.7V ICR14650 1200mah Rechargeable Lithium Ion Battery For Electric Shaver

3.7V ICR14650 1200mah Rechargeable Lithium Ion Battery For Electric Shaver

Product Details:

Place of Origin: GUANGZHOU
Brand Name: Sunland
Certification: ROHS,REACH,UL,UN38.3,MSDS
Model Number: ICR14650

Payment & Shipping Terms:

Minimum Order Quantity: 1000PCS
Price: US$0.8
Packaging Details: 50pcs/box, 4 boxes/carton
Delivery Time: 14 days
Payment Terms: T/T, Western Union
Supply Ability: 100000PCS/week
Get Best Price Contact Now

Detail Information

Type: Rechargeable Lithium Ion Batttery Voltage: 3.7V
Capacity: 1200mAh BMS: YES
Application: Electric Shaver Cycle Life: ≥500 Times
Max Size: D:16mm*H:66mm Connector: JST PHR-2P 22AWG
High Light:

1200mah Rechargeable Lithium Ion Battery

,

ICR14650 Rechargeable Lithium Ion Battery

Product Description

Rechargeable Lithium Ion Battery 3.7V ICR14650 1200mah For Electric Shaver



Feature:



1. Main application for electric shaver

2. Can support 1C charger and discharge

3. Long cycle lifre more than 500 time,80% of initial capacity

4. Safty







Rechargeable Lithium Ion Battery 3.7V ICR14650 1200mah For Electric Shaver



Parameter:



No. Items Specifications

Remark

1

Nominal Capacity

1200mAh



0.5C Standard discharge

2

Minimum Capacity

1100mAh
3

Nominal Voltage

3.7V

Mean Operation Voltage

4 Voltage of end of discharge  3.0V

Discharge cut-off voltage

5

Charge voltage

4.2V By standard charge method





6



Standard charging method



0.2C constant current,4.2V constant

voltage charge to 4.2V,continue charging

till current decline to ≤0.01C











7





Charge current



0.5C



600mA

Standard charge, charge time about :3.5h(Ref)





1C



1200mA

Rapid Charge, charge time about:2h(Ref)







8



Standard discharging method





0.5C constant current discharge to 3.0V,













9





Cell Internal Impedance





≤50mΩ



Internal resistance measured atAC 1KHZ after 50% charge











11



Maximum charge current





0.5C





1200mA



For continuous charging mod





12



Maximum discharge current





1C





1200mA



For continuous discharge method











13









Operation Temperature and relative humidity Range







Charge



0~45℃

60±25%R.H.









Charge at a very low temperature such as

blew 0℃,will be get a lower capacity and reduce cycle life of the battery







Discharge





-20~60℃

60±25%R.H.











14









Storage temperature for a long time









-20~25℃

60±25%R.H.





Do not storage exceed half year. Must charge once when storage for half year. must charge the battery which with protect circuit when storage for three months.



Rechargeable Lithium Ion Battery 3.7V ICR14650 1200mah For Electric Shaver

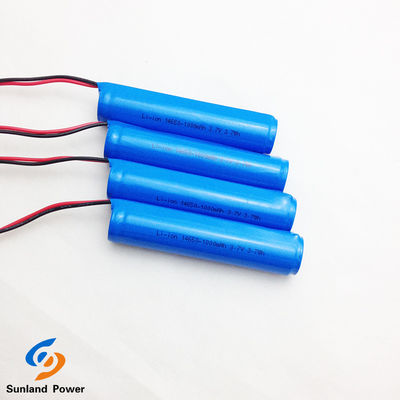

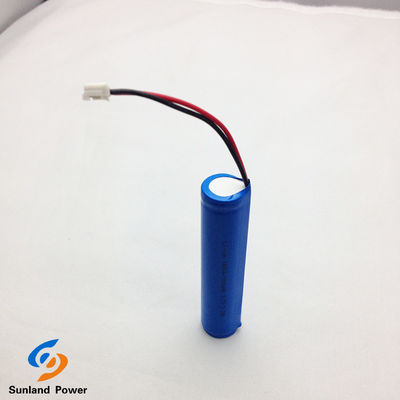

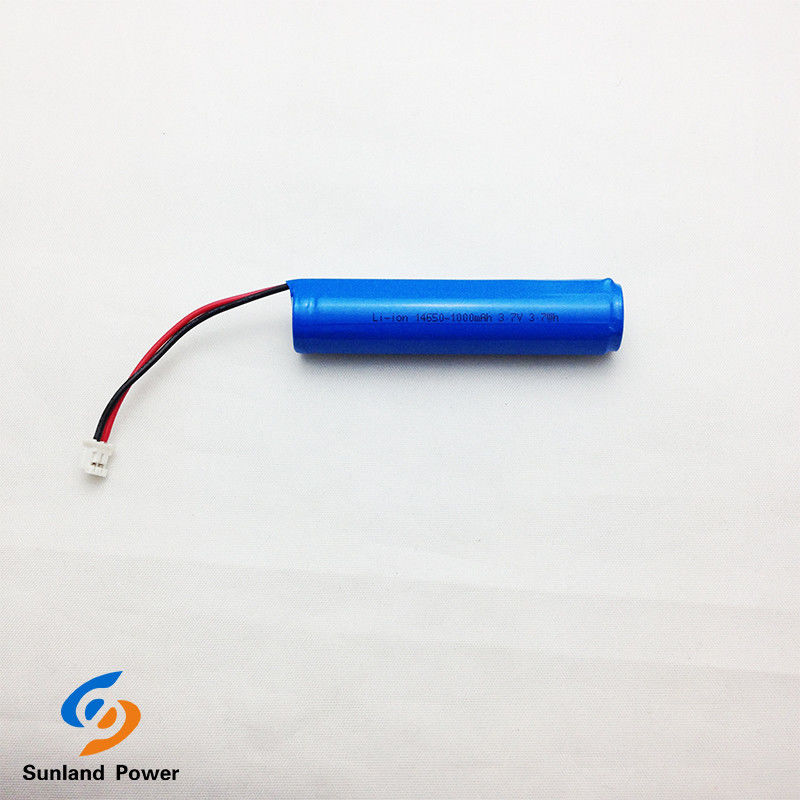

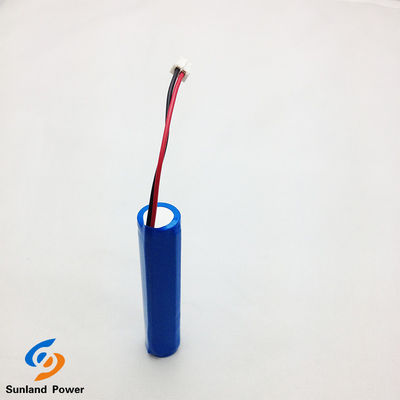

Picture:

3.7V ICR14650 1200mah Rechargeable Lithium Ion Battery For Electric Shaver 03.7V ICR14650 1200mah Rechargeable Lithium Ion Battery For Electric Shaver 13.7V ICR14650 1200mah Rechargeable Lithium Ion Battery For Electric Shaver 23.7V ICR14650 1200mah Rechargeable Lithium Ion Battery For Electric Shaver 3





Rechargeable Lithium Ion Battery 3.7V ICR14650 1200mah For Electric Shaver



Cycle Life

Charging and discharging battery as  blew conditions:

0.5C standard charge to 4.2V end-off

0.5Cstandard discharge to 3.0V cut-off



Continuous charge and discharge for 500 cycles ,the capacity will be measure after the 500th cycle
