Product Details:

Place of Origin: GUANGZHOU CHINA
Brand Name: Sunland
Certification: UN38.3 MSDS
Model Number: P-2024-O060

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Carton with protective liner
Delivery Time: Negotiable
Supply Ability: Negotiable
Get Best Price Contact Now

Detail Information

Product Description

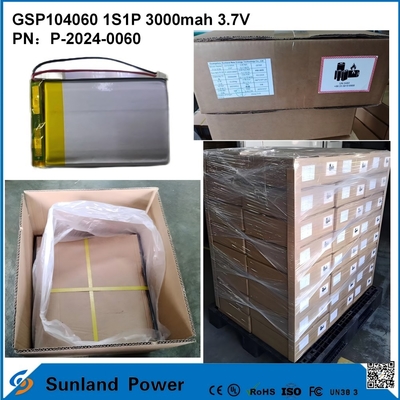

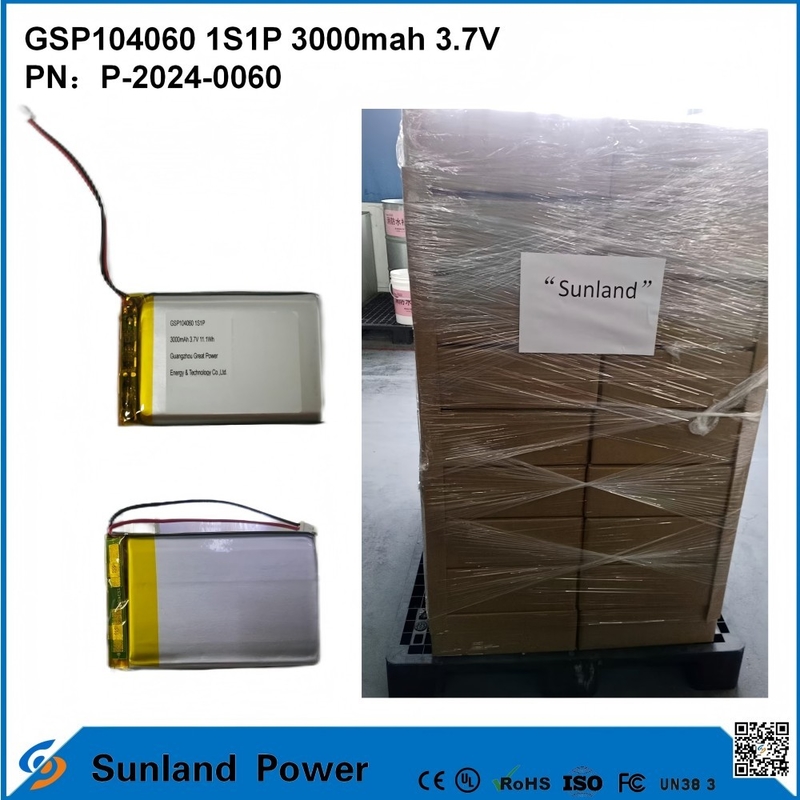

GSP104060 1S1P 3000MAH 3.7V

GSP104060 Lithium Polymer Battery Is Widely Used In Power Banks, Bluetooth Earphones And Bluetooth Speakers With A Cycle Life Of 500–2500 Charge/Discharge 0GSP104060 Lithium Polymer Battery Is Widely Used In Power Banks, Bluetooth Earphones And Bluetooth Speakers With A Cycle Life Of 500–2500 Charge/Discharge 1

2 Model:GSP104060 1S1P

3 Cell Specification




No.

Items Specifications Remark



1

Nominal Capacity 3000mAh



0.2C Standard discharge 0.2C



2

Minimum Capacity 2950mAh



3

Nominal Voltage



3.7V

Mean Operation Voltage



4

Delivery voltage



3.80~3.95V

Within 10 days from Factory




5

Charge Limited Voltage 4.2VBy standard charge method
Charge Upper Limited Voltage 4.2VBy standard charge method




6



Standard charging method

0.2C constant current charge to 4.2V,

constant voltage charge to 4.2V,continue charging till current decline to ≤0.02C.







7




Charge current



0.2C

Standard charge, charge time:6.5h(Ref)



0.5C

Rapid Charge, charge time:2.5h(Ref)




8

Standard discharging method



0.2C constant current discharge to 3.0V





Discharge Lower Limited Voltage



2.75V

By standard discharge method




9



Cell Internal Impedance




≤ 45mΩ



Internal resistance measured atAC 1KHZ with 50% charge







Continuous





No.



Items



Specifications



Remark



10



Maximum charge current



0.5C



For continuous charging mod



11



Maximum discharge current



1.0C



For continuous discharge mod







12





Operation Temperature and relative Humidity Range

 (60±25%R.H.)



Charge

0~ 10℃≤0.2C






Charging at low temperature such as below 0℃, capacity and cycle life will reduce.



10~45℃≤0.5C




Discharge



-20~0℃



≤0.5C



0~60℃



≤1.0C





13





Storage temperature at a long time





-20~25℃ 60±25%R.H.



Do not storage exceed halfyear.Must

charge at least once when storage halfyear, and must charge the battery(with protect

circuit) when storage for three months.
