7.4V 5AH LP806090 2S1P Polymer Lithium Ion Batteries With I2C Function With Fuel Gauge
Product Details:
| Place of Origin: | GUANGZHOU CHINA |
| Brand Name: | Sunland |
| Certification: | UN38.3 MSDS |
Payment & Shipping Terms:
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton with protective liner |
| Delivery Time: | Negotiable |
| Supply Ability: | Negotiable |
|
Detail Information |
|||
| Highlight: | 7.4V polymer lithium ion battery,5AH I2C lithium battery,LP806090 fuel gauge battery |
||
|---|---|---|---|
Product Description
7.4V 5AH LP806090 2S1P Polymer Lithium Ion Batteries With I2C Function With Fuel Gauge
Parameter:
| No. | Items | Specifications | Remark |
| 6.1 | Combination Method | 1parallels 2series | |
| 6.2 | Rating Capacity | 5Ah | 0.2C constant current(CC) discharge to 6V |
| 6.3 | Nominal voltage | 7.4V | |
| 6.4 | Max. charge voltage | 8.4V |
0.2C constant current(CC) charge to 8.4V,then constant voltage (CC)8.4V charge till charge current decline to ≤0.02C
|
| 6.5 | Discharge cut-off voltage | 6V | |
| 6.6 | Charge current | 2A | |
| 6.7 | Continuous Output Discharging current | 2A | |
| 6.8 | Dimension | 100L*60W*17Tmm | |
| 6.9 | Operating Temperature | 0~45℃ | Charging |
| -10~55℃ | Discharging |
7.4V 5AH LP806090 2S1P Polymer Lithium Ion Batteries With I2C Function With Fuel Gauge

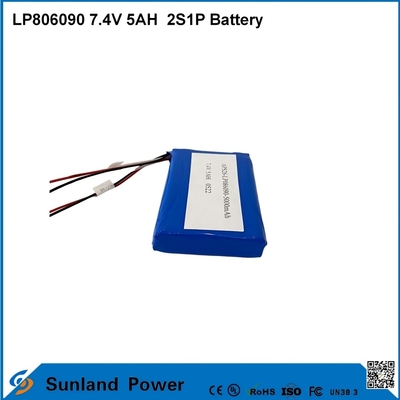

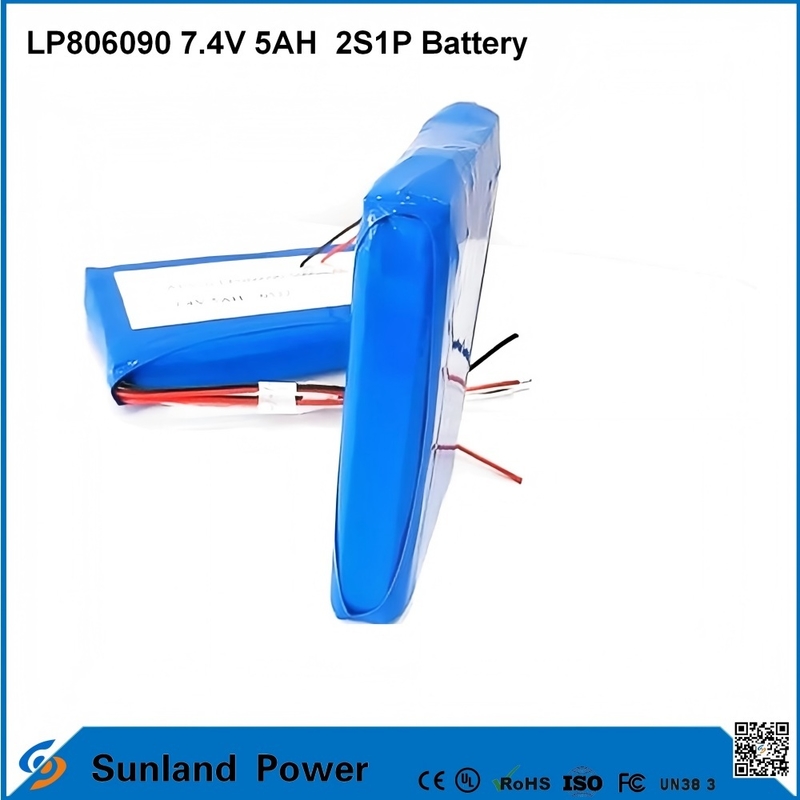

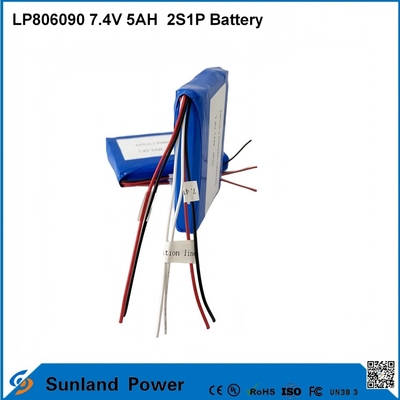

Picture:
7.4V 5AH LP806090 2S1P Polymer Lithium Ion Batteries With I2C Function With Fuel Gauge
BOM :
| NO | Items | Units: mm | Remark | |
| 1 | Thickness | T | 18 | Max |
| 3 | Width | W | 60 | Max |
| 4 | Height | H | 93 | Max |
| 5 | Cable Length/ | L | 100±3 | |
| NO | Part name | Quantity | Unit | Remark |
| 1 | Cell | 2 | ea | Great Power |
| 2 | Solder | 0.04 | g | Lead Free |
| 3 | PCM | 1 | Ea |
SH366003+ +PE616BA*2+ETA2893 |
| 4 | Cable | 6 | Ea | Charge,discharge,data |
| 5 | PVC | 1 | Blue PVC |
Capacity retention
The battery to be charge in accordance with standard charge condition at 20~25℃,then storage the battery at an ambient temperature 20~25℃ for 28 days.
Measure the capacity after 30 days with 0.2C at 20~25℃ as retention capacity more than 85%
