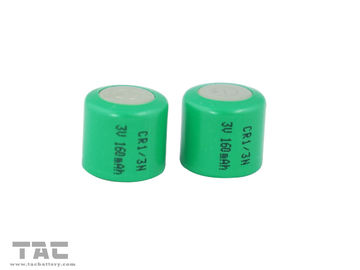

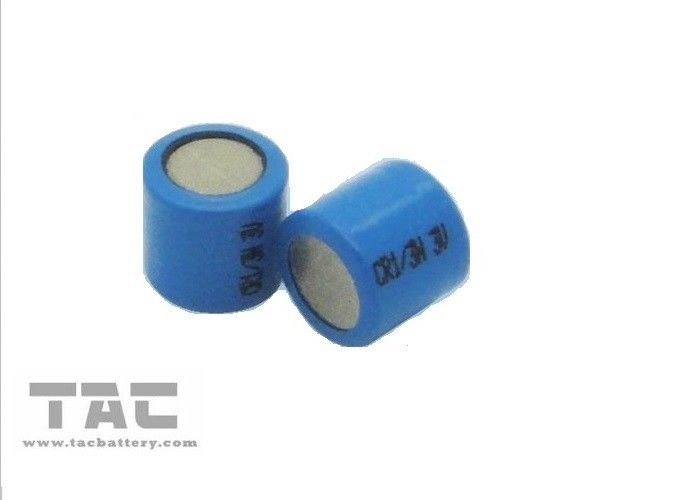

Primary Lithium Battery 3.0V CR11108 160mAh For Burglar Alarm
Product Details:
| Place of Origin: | Wuhan Shenzhen |
| Brand Name: | TAC |
| Certification: | MSDS REACH |
| Model Number: | PCRC0012 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Price: | usd 0.5-1 |
| Packaging Details: | Bulk Packing: 50 PCs/box, 20box/Carton, total 1000pcs/Carton;carton Size 325*177*190mm |
| Delivery Time: | 7-10 days after order confirm |
| Payment Terms: | TT/Paypal/LC |
| Supply Ability: | 1000000PCS/month |
|
Detail Information |
|||
| Material: | Lithium | Capacity: | 160mah |
|---|---|---|---|
| Voltage: | 3.7v | Pvc Color: | Blue Or Green |
| Life: | 5 Year | Warranty: | 1 Year |
| Rechargeable: | NO | Pack: | Workable |
| High Light: | cr2 lithium battery,li-on battery pack |
||
Product Description
Primary Lithium Battery 3.0V CR11108 160mAh For Burglar Alarm
Primary Lithium Battery 3.0V CR11108 160mAh For Burglar Alarm
Specification FOR Primary Lithium Battery 3.0V CR11108 160mAh For Burglar Alarm
| No. | Items | Specification |
| 1 | Nominal Voltage | 3.0V |
| 2 | Rated Capacity | 160mAh |
| 3 | Minimal capacity | 150mAh |
| 4 | Max. Discharge Current | 5mA continuous |
| 80mA pulse | ||
| 5 | Discharge Cut-off Voltage | 2.0 V |
| 6 | Weight | Approx.3.3 g |
| 7 | Dimensions | Diameter (11.5±0.2)*Height(10.5±0.2)mm |
| 8 | Operatin Temp. |
-40 ℃to 60 ℃ |
| 9 | Storage Temp. ＜1 year | -10 ℃to 40 ℃ |
| 10 | Storage Temp. ＜3 months | -40 ℃to 60 ℃ |
| 11 | Whether installs the PTC |
NO |
Packing & Delivery:
- 50 PCs/box, 20box/Carton, total 1000pcs/Carton, carton Size 325*177*190mm
- Sample with stock 3 days after T/T,Mass order with stock 7 days after T/T
Features:
1. High energy density than normal primary battery
2. 3.0v High open circuit voltage than normal alkaline battery
3. Wide range of operating temperature ,suitable for low or high temperature situation
4. Stable operating voltage and current,
5. 5 years long operating time
6. The battery can be stock for long time and low self-discharge rate (less than 2% per year at 20°C).
Main Applications :
1. Various Utility meter including of water, electricity, gas meter,AMR
2. Alarm or security equipment (Burgla alarm smoke alarm system detector)
3. GPS tracking system
4. Teal time clock
5. Digital control machine
6. Military
7. Remote monitoring systems
8. Car electronics
9. Camera

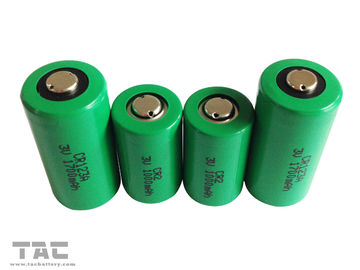

Similar Model for Primary Lithium Battery 3.0V
| Model | Nominal Voltage (V) |
Nominal Capacity (mAh) |
Standard Discharge current(mA) |
End Voltage (V) |
Max. Diameter (mm) |
Max. Height (mm) |
Reference Weight (g) |
TestTemperature (°C) |
| CR14250 | 3v | 650.0 | 10 | 2 | 14.5 | 25.0 | 10 | 23±3 |
| CR14335 | 3v | 800.0 | 10 | 2 | 14.5 | 33.5 | 23±3 | |
| CR14505 | 3v | 1400.0 | 10 | 2 | 14.5 | 50.5 | 17 | 23±3 |
| CR17335 | 3v | 1300.0 | 10 | 2 | 17.0 | 33.5 | 16 | 23±3 |
| CR17450 | 3v | 2000.0 | 10 | 2 | 17.0 | 45.0 | 25 | 23±3 |
| CR17505 | 3v | 2300.0 | 10 | 2 | 17.0 | 50.5 | 28 | 23±3 |
| CR17345 (CR123A) | 3v | 1400.0 | 10 | 2 | 17.0 | 34.5 | 16 | 23±3 |
| CR11108 (CR1/3N) | 3v | 160.0 | 1 | 2 | 11.6 | 10.8 | 3.3 | 23±3 |
| CR15H270 (CR2) | 3v | 850.0 | 10 | 2 | 15.6 | 27.0 | 11 | 23±3 |
| CR-P2 | 6v | 1400.0 | 10 | 4 | 34.8X35.8X19.5 | 34 | 23±3 | |
| 2CR5 | 6v | 1400.0 | 10 | 4 | 34X45X17 | 34 | 23±3 | |
| CR-V3 | 6v | 3000.0 | 20 | 2 | 29X14.5X52 | 34 | 23±3 | |
Period of Warranty
Because batteries utilize a chemical reaction, battery performance will deteriorate over time even if stored for a long period of time without being used. In addition, if the various usage conditions such as discharge, ambient temperature, are not maintained within the specified ranges the life expectancy of the battery may be shortened or the device in which the battery is used may be damaged by electrolyte leakage. Please change the battery in time.
