3.0V CR123A 1300mAh Primary Lithium Li-MnO2 Battery High Energy Density
Product Details:
| Place of Origin: | Wuhan Shenzhen |
| Brand Name: | TAC |
| Certification: | MSDS REACH |
| Model Number: | CR123A 3.0V 1300 mAh |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500pcs |
|---|---|
| Price: | usd 0.5-1 |
| Packaging Details: | 10pcs/box |
| Delivery Time: | 7-10 days after order confirm |
| Payment Terms: | T/T, LC, Paypal etc. |
| Supply Ability: | 50K/Day |
|
Detail Information |
|||
| Material: | Lithium Li-MnO2 Battery | Brand: | Tac |
|---|---|---|---|
| Capacity: | 1300mah | Voltage: | 3.0v |
| Long Life: | 5 Years | Warranty: | 1 Year |
| Size: | 17*33.5mm | Pvc Color: | Green Blue Or OEM |
| High Light: | cr2 lithium battery,li-on battery pack |
||
Product Description
3.0V CR123A 1300mAh Primary Lithium Li-MnO2 Battery High Energy Density

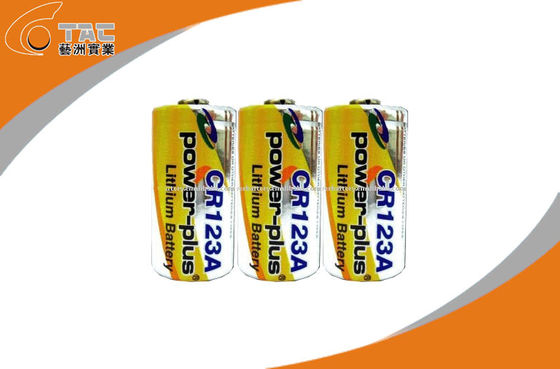

Battery Photos
Application
1. Utility meter (water, electricity, gas meter, AMR)
2. Alarm or security equipment (smoke alarm system, detector)
3. GPS tracking
4. Teal time clock
5. Digital control machine
6. Military
7. Remote monitoring systems
8. Car electronics
9. Camera
Specification for 3.0V CR123A 1300mAh Li/MnO2 Primary Lithium Battery
|
No. |
Items |
Specification |
|
1 |
Nominal Voltage |
3.0 V |
|
2 |
Rated Capacity |
1300 mAh with 100 ohm load |
|
3 |
Minimal capacity |
1300 mAh with 100 ohm load |
|
4 |
Max. Discharge Current |
1500 mA continuous |
|
|
|
3000 mA pulse |
|
5 |
Discharge Cut-off Voltage |
2.0 V |
|
6 |
Weight |
Approx. 16 g |
|
7 8 |
Dimensions |
Diameter: 16.7±0.3 mm |
|
|
|
Height: 34.2±0.3 mm |
|
|
Operating Temp. |
-40 °C to 60 °C |
|
9 |
Storage Temp. less than 1 year |
-10 °C to 40 °C |
|
10 |
Storage Temp. less than 3 months |
-40 °C to 60 °C |
|
11 |
Note:Polyswitch(PTC:144)is inside the cell. |
|
