CR123A Battery Primary Lithium Battery 1700mah Similar With Panasonic

CR123A Battery Primary Lithium Battery 1700mah Similar With Panasonic

    • CR123A Battery Primary Lithium Battery 1700mah Similar With Panasonic
    • CR123A Battery Primary Lithium Battery 1700mah Similar With Panasonic
    • CR123A Battery Primary Lithium Battery 1700mah Similar With Panasonic
    • CR123A Battery Primary Lithium Battery 1700mah Similar With Panasonic
  • CR123A Battery Primary Lithium Battery 1700mah Similar With Panasonic

    Product Details:

    Place of Origin: guangzhou
    Brand Name: TAC
    Certification: UL
    Model Number: PCRC0524

    Payment & Shipping Terms:

    Minimum Order Quantity: 1000pcs
    Price: USD 0.6
    Packaging Details: 50 PCs/box, 20box/Carton, total 1000pcs/Carton, carton Size 360*185*220mm
    Delivery Time: Sample with stock 3 days after T/T,Mass order with stock 7 days after T/T ,Without stock 45days
    Payment Terms: TT/Paypal/UL
    Supply Ability: 1000000pcs/month
    Contact Now
    Detailed Product Description
    Material: Lithium Battery Size: 17*35.5mm
    Voltage: 3.0v Capacity: 1700mah
    Life: 5 Years Warranty: 1 Year
    Pvc: Blue Green Or OEM Rechargeable: NO


    CR123A Battery Primary Lithium Battery 1700mah Similar With Panasonic

    Features For
    CR123A Battery Primary Lithium Battery 1700mah Similar With Panasonic

    Characteristics

    1. Primary Lithium battery

    2. High open circuit voltage 3.0v

    3. Wide range of operating temperature

    4. Stable operating voltage and current

    5. Long operating time ,the battery work over 5 years

    6. Low self-discharge rate (less than 2% per year at 20°C).



    Base Data

    Place of Origin:

    Guangdong China (Mainland)

    Brand Name:

    TAC

    Model Name:

    3.0V CR123A 1700mAh

    Other Name:

    CR123A

    Nominal Voltage

    3.2V

    Nominal Capacity:

    1700mAh

    Size:

    16.7(D)*34.2(H))mm


    Specification for
    CR123A Battery Primary Lithium Battery 1700mah Similar With Panasonic


    No.

    Items

    Specification

    1

    Nominal Voltage

    3.0 V

    2

    Rated Capacity

    1700 mAh with 100 ohm load

    3

    Minimal capacity

    1700 mAh with 100 ohm load

    4

    Max. Discharge Current

    1700 mA continuous





    3000 mA pulse

    5

    Discharge Cut-off Voltage

    2.0 V

    6

    Weight

    Approx. 16 g

    7
    8

    Dimensions

    Diameter: 16.7±0.3 mm

    Height: 34.2±0.3 mm



    Operating Temp.

    -20 ℃to 60 ℃

    9

    Storage Temp. <1 year

    -10 ℃to 40 ℃

    10

    Storage Temp. <3 months

    -20 ℃to 60 ℃

    11

    Note:Poly-switch(PTC:144)is inside the cell.



    Main Applications :

    1. Utility meter (water, electricity, gas meter,AMR)

    2. Alarm or security equipment (smoke alarm system, detector)

    3. GPS tracking

    4. Teal time clock

    5. Digital control machine

    6. Military

    7. Remote monitoring systems

    8. Car electronics

    9. Camera

     and more


    Normal Industry Paking for Li-MNO2 Battery Cell

    CR123A Battery Primary Lithium Battery 1700mah Similar With Panasonic

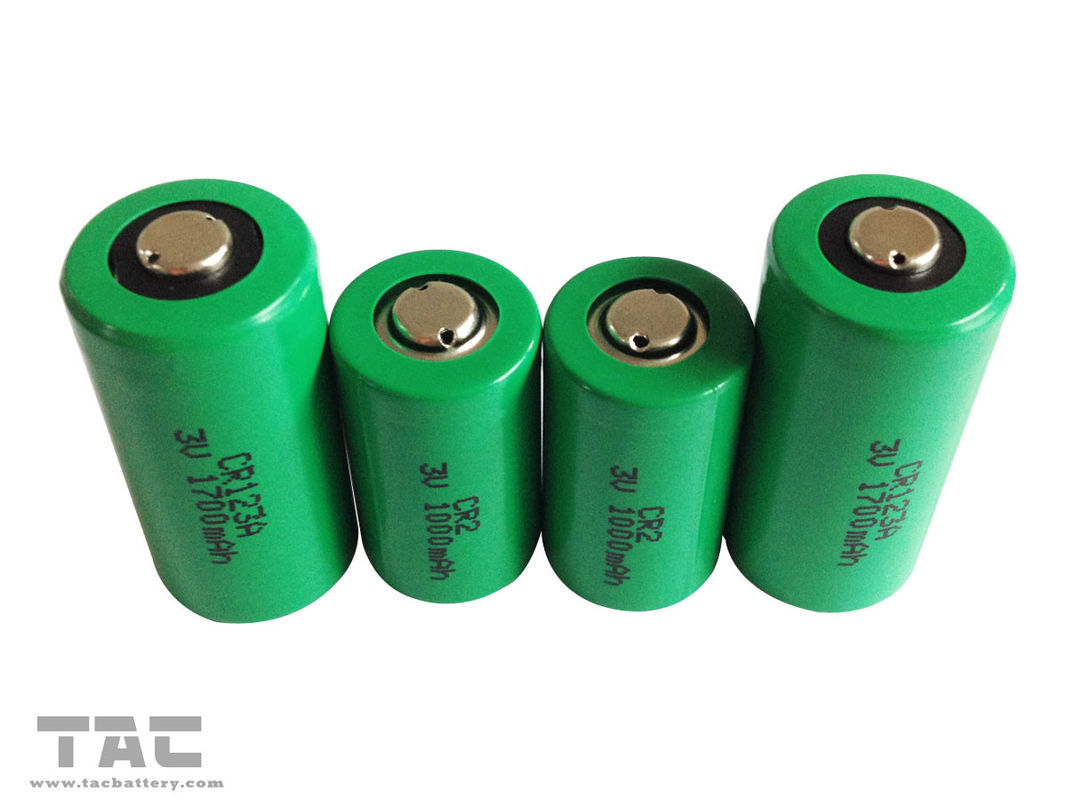

    Picture &Drawing:



    High Capacity 3.0V CR123A 1700mAh  Li-Mn Battery

    High Capacity 3.0V CR123A 1700mAh Li-Mn Battery



    High Capacity 3.0V CR123A 1700mAh Li-Mn Battery



    High Capacity 3.0V CR123A 1700mAh Li-Mn Battery

































































































































































    Available Model  :



    CR123A, CR2, CRV3, CR14500,CR9V, 2CR5, CRP2 etc.



    CR123A Battery Primary Lithium Battery 1700mah Similar With Panasonic



    Cautions in use
    To ensure proper use of the battery please read the manual carefully before using it.
       . Handling

    •  Do not expose to, dispose of the battery in fire.
    • Do not put the battery in a charger or equipment with wrong terminals connected.
    • Avoid shorting the battery
    • Avoid excessive physical shock or vibration.
    • Do not disassemble or deform the battery.
    • Do not immerse in water.
    • Do not use the battery mixed with other different make, type, or model batteries.
    • Keep out of the reach of children.

         . Storage

    • Store the battery in a cool, dry and well-ventilated area.

         . Disposal

    • Regulations vary for different countries.
    • Dispose of in accordance with local regulations.


    Battery Operation Instruction
    Discharging current
    The discharging current does not have to surpass this specification book stipulation the biggest discharging current, the oversized electric current electric discharge can cause the battery capacity play to reduce and to cause the battery heat.

    Electric discharge temperature
    The battery discharge must carry on in the ambient temperature scope which this specification book stipulated.

    Storing the Batteries

    The battery should store in the product specification book stipulation temperature range. If has surpasses above for six months the long time storage, the discharge capacity will decrease sharply.

    Period of Warranty

     The battey can be use 5 year .
