Product Details:

Place of Origin: Wuhan Shenzhen
Brand Name: TAC
Certification: MSDS REACH
Model Number: 3.0V CR123A

Payment & Shipping Terms:

Minimum Order Quantity: 1000pcs
Price: Price Negotiable
Packaging Details: Bulk Packing: 50 PCs/box, 20box/Carton, total 1000pcs/Carton, carton Size 360*185*220mm
Delivery Time: 7-10 days after order confirm
Payment Terms: TT/Paypal/LC
Supply Ability: 1000000PCS/Month
Get Best Price Contact Now

Detail Information

High Light:

cr2 lithium battery

,

lithium battery

Product Description


Long cycle life 3.0V CR123A 1300mAh TAC Primary Lithium Li-MnO2 Battery

Quick Detail:



Place of Origin:

Guangdong China (Mainland)

Brand Name:

TAC

Model Name:

3.0V CR123A 1300mAh Li/MnO2 Primary Lithium Battery

Other Name:

CR123A

Nominal Voltage

3.2V

Nominal Capacity:

1300mAh

Size:

16.7(D)*34.2(H))mm



Weight:

16g

Specification:


No.

Items

Specification

1

Nominal Voltage

3.0 V

2

Rated Capacity

1300 mAh with 100 ohm load

3

Minimal capacity

1300 mAh with 100 ohm load

4

Max. Discharge Current

1500 mA continuous





3000 mA pulse

5

Discharge Cut-off Voltage

2.0 V

6

Weight

Approx. 16 g

7
8

Dimensions

Diameter: 16.7±0.3 mm

Height: 34.2±0.3 mm



Operating Temp.

-20 ℃to 60 ℃

9

Storage Temp. <1 year

-10 ℃to 40 ℃

10

Storage Temp. <3 months

-20 ℃to 60 ℃

11

Note:Poly-switch(PTC:144)is inside the cell.


Features:

1. High energy density

2. High open circuit voltage

3. Wide range of operating temperature

4. Stable operating voltage and current

5. Long operating time

6. Low self-discharge rate (less than 2% per year at 20°C).


Main Applications :

1. Utility meter (water, electricity, gas meter,AMR)

2. Alarm or security equipment (smoke alarm system, detector)

3. GPS tracking

4. Teal time clock

5. Digital control machine

6. Military

7. Remote monitoring systems

8. Car electronics

9. Camera

  ... ...

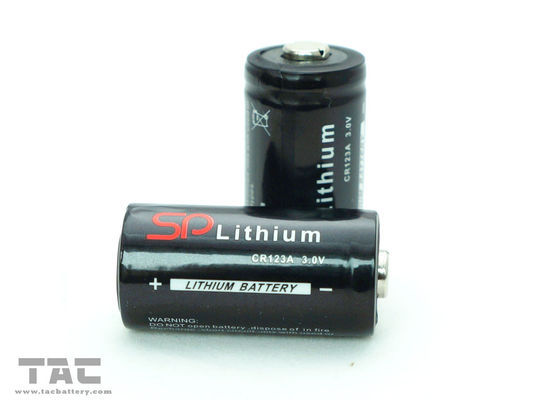

Picture &Drawing:
Long cycle life 3.0V CR123A 1300mAh TAC Primary Lithium Li-MnO2 Battery

Long cycle life 3.0V CR123A 1300mAh TAC Primary Lithium Li-MnO2 Battery



Long cycle life 3.0V CR123A 1300mAh TAC Primary Lithium Li-MnO2 Battery



Long cycle life 3.0V CR123A 1300mAh TAC Primary Lithium Li-MnO2 Battery


Available Model for the LIFePO4 Button Cell:

  1. CR123A, CR2, CRV3, CR14500,CR9V, 2CR5, CRP2 etc.

Cautions in use
To ensure proper use of the battery please read the manual carefully before using it.
   . Handling

  •  Do not expose to, dispose of the battery in fire.
  • Do not put the battery in a charger or equipment with wrong terminals connected.
  • Avoid shorting the battery
  • Avoid excessive physical shock or vibration.
  • Do not disassemble or deform the battery.
  • Do not immerse in water.
  • Do not use the battery mixed with other different make, type, or model batteries.
  • Keep out of the reach of children.

     . Storage

  • Store the battery in a cool, dry and well-ventilated area.

     . Disposal

  • Regulations vary for different countries.
  • Dispose of in accordance with local regulations.


Battery operation instruction
Discharging current
The discharging current does not have to surpass this specification book stipulation the biggest discharging current, the oversized electric current electric discharge can cause the battery capacity play to reduce and to cause the battery heat.

Electric discharge temperature
The battery discharge must carry on in the ambient temperature scope which this specification book stipulated.

  • Storing the Batteries

The battery should store in the product specification book stipulation temperature range. If has surpasses above for six months the long time storage, the discharge capacity will decrease sharply.

Period of Warranty
Because batteries utilize a chemical reaction, battery performance will deteriorate over time even if stored for a long period of time without being used. In addition, if the various usage conditions such as discharge, ambient temperature, are not maintained within the specified ranges the life expectancy of the battery may be shortened or the device in which the battery is used may be damaged by electrolyte leakage. Please change the battery in time.
